Petroleum Hose - Tank Truck

Corrugated Oil Field Vac/Frac Hose

Part Number: Novaflex 3275

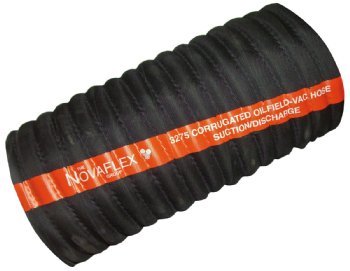

Novaflex 3275
Corrugated Oil Field Vac/Frac Hose
Novaflex® 3275 is a rugged suction and discharge, flexible hose designed for oilfield vacuum truck and oilfield fracturing applications. This hose is ideal where applications require a hose designed for the transfer of salt & fresh water, tank bottoms, drilling mud, combined with dilute solutions of crude oil.

Construction:
Tube: Black blended nitrile
Reinforcement: Multiple tire cord layers & dual wire helix,
full suction and discharge
Cover: Black abrasion, ozone & UV resistant
Temperature Range: -40°(-40°C) to +180°F (+82°C)
Branding: Full suction /150 psi WP
Not recommended for use with refined petroleum products such as gasoline.

Not for use with BioFuels. Not recommended for refined petroleum products such as gasoline!


When coupling chemical and higher risk hoses, Novaflex® recommends the use of crimp couplings using interlocking crimp ferrules.
