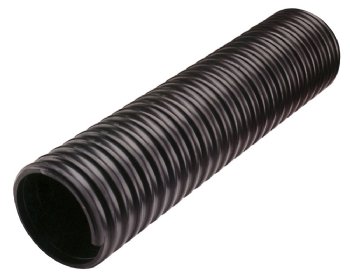

HDAP - All Purpose Thermoplastic Hose

Part Number: 9SFHDAP
Heavy duty thermoplastic inner tube with fully encapsulated plastic,external wear strip.All extruded thermoplastic heavy wall hose.Designed for medium duty material handling where flexibility is paramount. Offers superior chemical and temperature resistance.
*Note where static charge is a concern, please refer to NF-Static Conductor style


Applications

Good chemical resistance

Heavy wall for industrial use

Abrasion resistant for medium duty material handling

Smooth interior for superior product flow

A lighter weight flexible alternative to traditional rubber hoses

Industrial dirt and dust control

Medium duty material handling

Slurry transfer


Construction
Product code: 9SFHDAP
Material: thermoplastic rubber
Diameters: 2” to 8”
Bend radius: 3” I.D. = 4”
Weight: 3” = 1 lbs/ft
Lengths: Diameters 2” to 4”100ft lengths. Diameters: 5” to 8”, 50 ft lengths.
Temperature range:-65°F to +160°F
Colour: Black with black external helix

HDAP - All Purpose Thermoplastic Hose
HDAP - All Purpose Thermoplastic Hose
