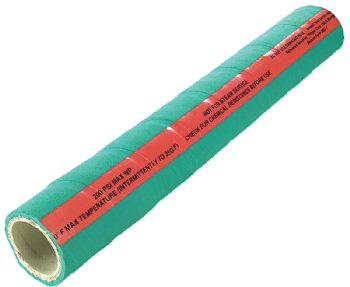

UHMW Chemical Suction & Discharge Hose

Part Number: Novaflex 4705

A rubber, special kink and crush resistant version of 4700 design utilizing a multi-ply construction with dual special monofilament helix rods. Excellent for use in those demanding abusive transfer applications. To utilize the maximum temperature rating of the hose always permanently attach couplings.
*WARNING!!

Construction:
Tube: Ultra high molecular weight polyethylene.
Reinforcement: Multiple plies of tire cord with dual monofilament helix, static wire.
Cover: Green EPDM rubber.
Length: 100 ft.
Temperature Range: -40°F to +212°F.
(May be used at +250°F intermittent). Consult chemical resistant chart.
Teflon® is a registered trademark of DuPont
Not for steam service. Can be open end steam cleaned

*WARNING! Elevated temperatures can change the chemical resistance rating of 4705. Check the chemical resistance charts published by Novaflex to verify that the chemical to be transferred is rated for use with the UHMWP tube at the temperature & concentrations listed. Most chemicals become more aggressive the higher the temperature, reducing the ability of the tube material to withstand them. Compatibility information is available from Novaflex. If no data exists, it is the users responsibility to determine if the hose is compatible with the chemical to be transferred. Never use Novaflex 4705 above the ratings listed by Novaflex.

The information provided within is for informational purposes only. We have made every effort to ensure the accuracy of the provided information and assume no responsibility for any loss or damage due to errors or omissions or to the use or misuse of any information supplied. It is impossible to test all products under all conditions to which they might be subjected in the field. It is therefore the buyer and/or end users' responsibility to test all products under the conditions that duplicate the service conditions prior to installation. All improvements, all specifications are subject to change without prior notice. It is the buyer and/or end users' responsibility to review our complete Terms and Conditions.
